Adding a Free WAF to My Homebox: CrowdSec AppSec Tutorial ft. Traefik and Dokploy

I maintain a "Homebox"—which in my case is a cloud server where I host a variety of personal applications. Because some of these applications are exposed to the public internet, and because I often use this server as a quick-deployment vessel for new projects, security is paramount.

To protect this setup, I recently added a Web Application Firewall (WAF) using CrowdSec. CrowdSec is an incredible open-source, collaborative security engine. A WAF is essential because it provides "virtual patching"—stopping malicious payloads, stopping automated scanners, and shielding the applications from known CVEs even if the underlying code hasn't been updated yet.

My Homebox is managed using Dokploy, a fantastic PaaS tool that uses Traefik as its underlying reverse proxy. In this tutorial, I'll walk you through exactly how I integrated CrowdSec's AppSec capabilities directly into Traefik using a plugin, creating a robust, free WAF that protects all my deployments.

(Note: While this tutorial uses Dokploy for managing the configurations, these exact concepts and Docker Compose files can be used to protect any standard Traefik environment!)

How CrowdSec Intelligence Works

A common misconception is that CrowdSec sends your traffic logs to the cloud to be analyzed. This is entirely false.

1. Local First: CrowdSec builds its intelligence locally. The engine runs on your server, detects attacks locally, and bans locally. It works perfectly even with zero internet connection.
2. Privacy-Preserving Community (Opt-in): Sharing intelligence with the CrowdSec Community is strictly optional. If you do opt-in via the CrowdSec Console, it only shares anonymized signals (like "IP X attempted a known exploit"), never raw logs, request payloads, or sensitive data. You benefit from community blocklists without compromising your data privacy.

Standard CrowdSec (Layer 4) vs. AppSec (Layer 7)

Before diving into the configuration, it is crucial to understand the difference between standard CrowdSec behavior and the newer AppSec feature. They operate at completely different layers of the OSI model:

• Standard CrowdSec (Layer 4): Acts at the network level. It analyzes logs (like SSH failures or HTTP 404 floods) and blocks bad IP addresses entirely by talking to a firewall (like iptables). If an IP is banned, they can't even open a TCP connection to your server.
• CrowdSec AppSec (Layer 7): Acts as a true WAF at the application level. Instead of just looking at IPs, it actively inspects the actual HTTP payloads, headers, and query parameters (like looking for specific malicious multipart/form-data) to catch zero-days and specific application-level CVE exploits in real-time.

Here is a simple visualization of how the architecture differs:

┌────────────────────────────────────────────────────────┐
│ STANDARD CROWDSEC (Layer 4 - Network IP Blocking)      │
└────────────────────────────────────────────────────────┘
  Attacker IP ──> [ Firewall / iptables ] ──X (Blocked instantly)
                          ▲
                          │ (Updates ban list)
                    [ CrowdSec Engine ] <── (Reads background logs)
-
-
┌────────────────────────────────────────────────────────┐
│ CROWDSEC APPSEC (Layer 7 - Payload Inspection WAF)     │
└────────────────────────────────────────────────────────┘
  Attacker HTTP Request ──> [ Traefik + Bouncer Plugin ]
                                  │   ▲
                  (Sends payload) │   │ (Returns Allow/Block)
                                  ▼   │
                        [ CrowdSec AppSec Engine ]
                           (Inspects HTTP body)

Traefik Plugins & The CrowdSec Bouncer

Traefik is a modern reverse proxy that routes traffic to my Docker containers. One of its best features is Plugins—which allow you to extend Traefik's core functionality without needing to recompile the binary.

For this setup, we're using the CrowdSec Traefik Bouncer plugin. It acts as a bridge between Traefik and the CrowdSec AppSec engine. It intercepts traffic at the edge and asks CrowdSec if a request payload is safe or malicious before allowing it to reach the application.

Step-by-Step Implementation Guide

Here is exactly how I configured this in my Dokploy/Traefik environment.

1. Deploying the CrowdSec Container

First, I deployed the CrowdSec engine. I used the official Docker image and used the COLLECTIONS environment variable to automatically install the AppSec rules on startup.

services:
  crowdsec:
    image: crowdsecurity/crowdsec:latest
    environment:
      GID: "${GID-1000}"
      BOUNCER_KEY_TRAEFIK: "${BOUNCER_KEY_TRAEFIK}"
      COLLECTIONS: "crowdsecurity/linux crowdsecurity/traefik crowdsecurity/http-cve crowdsecurity/appsec-virtual-patching crowdsecurity/appsec-generic-rules"
    volumes:
      - ../files/acquis.yaml:/etc/crowdsec/acquis.yaml
      - crowdsec-db:/var/lib/crowdsec/data/
      - crowdsec-config:/etc/crowdsec/
    security_opt:
      - no-new-privileges:true
    labels:
      - traefik.enable=false
    restart: always
    networks:
      - dokploy-network

2. The Critical LAPI Key

Notice the BOUNCER_KEY_TRAEFIK variable above. This is the LAPI Key (Local API Key), which securely authenticates the Traefik plugin with your CrowdSec engine. Without it, Traefik cannot communicate with CrowdSec.

When configured via this environment variable, the CrowdSec container doesn't enforce a strict key format. Whatever string you set becomes the valid key. You can simply generate a strong, random 32-character string, assign it to BOUNCER_KEY_TRAEFIK in your Docker Compose .env file, and then feed that exact same string into your Traefik middleware configuration later.

3. Configuring Acquisition (acquis.yaml)

Installing the AppSec collections is not enough; you must explicitly tell CrowdSec to start listening for AppSec traffic. I mounted this acquis.yaml file into the container:

---
source: appsec
listen_addr: 0.0.0.0:7422
path: /
appsec_configs:
  - crowdsecurity/appsec-default
labels:
  type: appsec

4. The Traefik Middleware (middlewares.yaml)

Next, I configured the Traefik middleware using Dokploy's built-in file system editor. This tells Traefik to use the Bouncer plugin and forward requests to the CrowdSec AppSec engine.

http:
  middlewares:
    redirect-to-https:
      redirectScheme:
        scheme: https
        permanent: true
    crowdsec:
      plugin:
        bouncer:
          enabled: true
          logLevel: DEBUG
          crowdsecMode: appsec
          crowdsecLapiKey: keystring # Replace with your LAPI key
          crowdsecLapiScheme: http
          crowdsecLapiHost: crowdsec:8080
          crowdsecAppsecEnabled: true
          crowdsecAppsecHost: crowdsec:7422
          crowdsecAppsecFailureBlock: true
          crowdsecAppsecUnreachableBlock: true

Fail-Closed Protection

Pay special attention to crowdsecAppsecFailureBlock: true and crowdsecAppsecUnreachableBlock: true. These are critical for security. They ensure a "fail-closed" architecture. If the CrowdSec container crashes, or if the AppSec engine returns a 500 error, Traefik will block the incoming request entirely rather than letting it bypass the WAF and hit your application.

5. Global Enforcement

Finally, to ensure every single request hitting my server is inspected, I hooked the crowdsec middleware directly to Traefik's main entrypoints (web and websecure):

entryPoints:
  web:
    address: :80
    http:
      middlewares:
        - crowdsec@file
  websecure:
    address: :443
    http3:
      advertisedPort: 443
    http:
      tls:
        certResolver: letsencrypt
      middlewares:
        - crowdsec@file

Keeping the WAF Updated (Automation)

Installing a WAF is only half the battle. Vulnerabilities are discovered daily, so your rules need to be updated constantly to catch new CVEs.

To update CrowdSec, you need two commands:

1. cscli hub update (Downloads the latest index of available rules)
2. cscli hub upgrade (Applies updates to your installed collections)

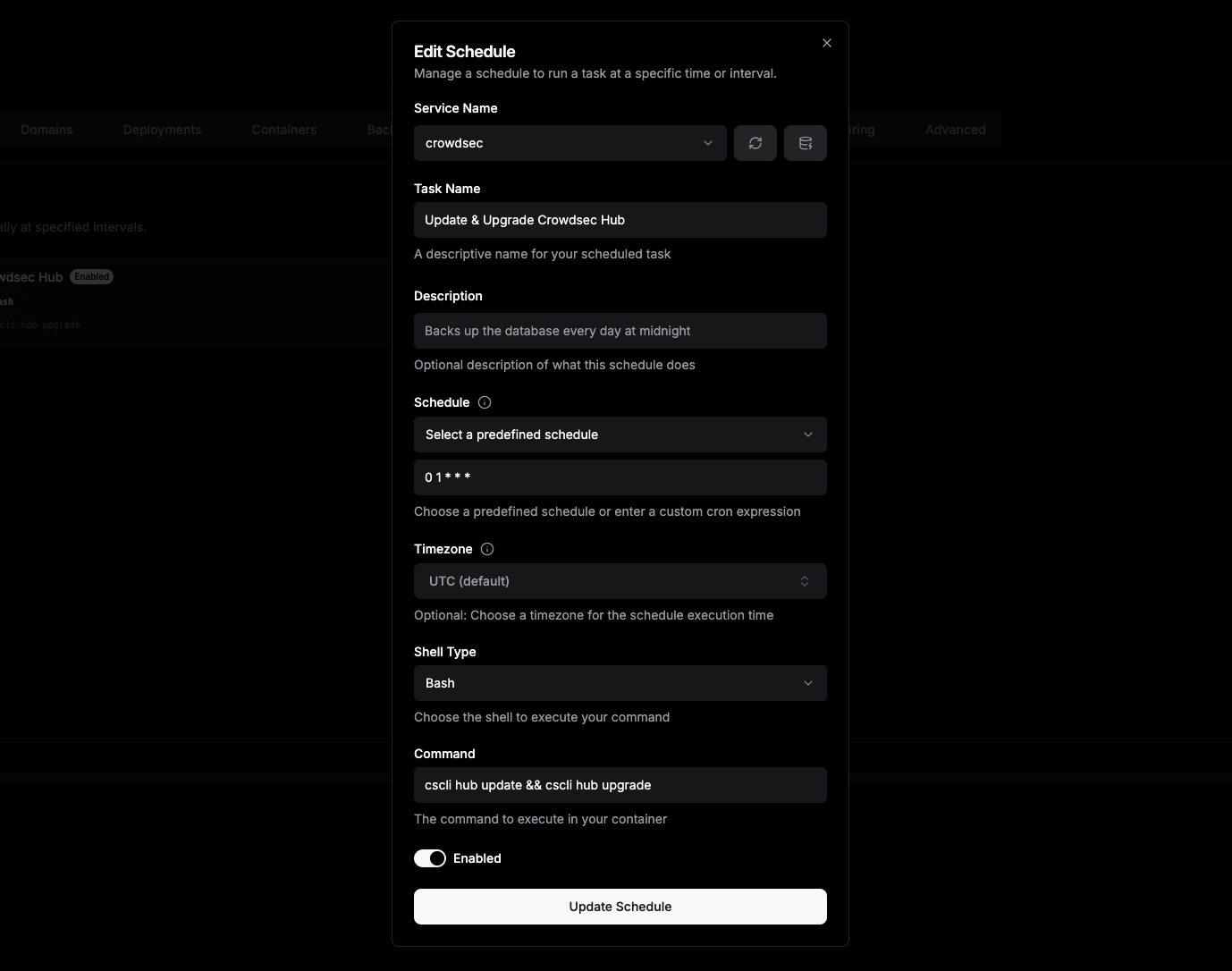

I automated this process using Dokploy Schedules, configuring it to run once a day. Daily updates are the sweet spot: they keep you protected from newly published CVEs without causing excessive, overly-granular resource usage.

How I Handle the Required Restart

One important caveat: after updating the rules, the CrowdSec engine requires a restart for new AppSec rules to take effect.

In my setup, my routine Dokploy container backups run shortly after the update schedule. Because the backup process stops the container to back up the configuration and then starts it again, that naturally becomes the restart step that applies the updated rules.

Real-World Testing: Blocking CVE-2025-55182

To verify the setup, I decided to test it against a very real, very dangerous exploit: CVE-2025-55182 (a Next.js Prototype Pollution vulnerability that leads to Remote Code Execution).

I used an open-source exploit tool (rix4uni/CVE-2025-55182) and fired it directly at a domain hosted on my protected Homebox.

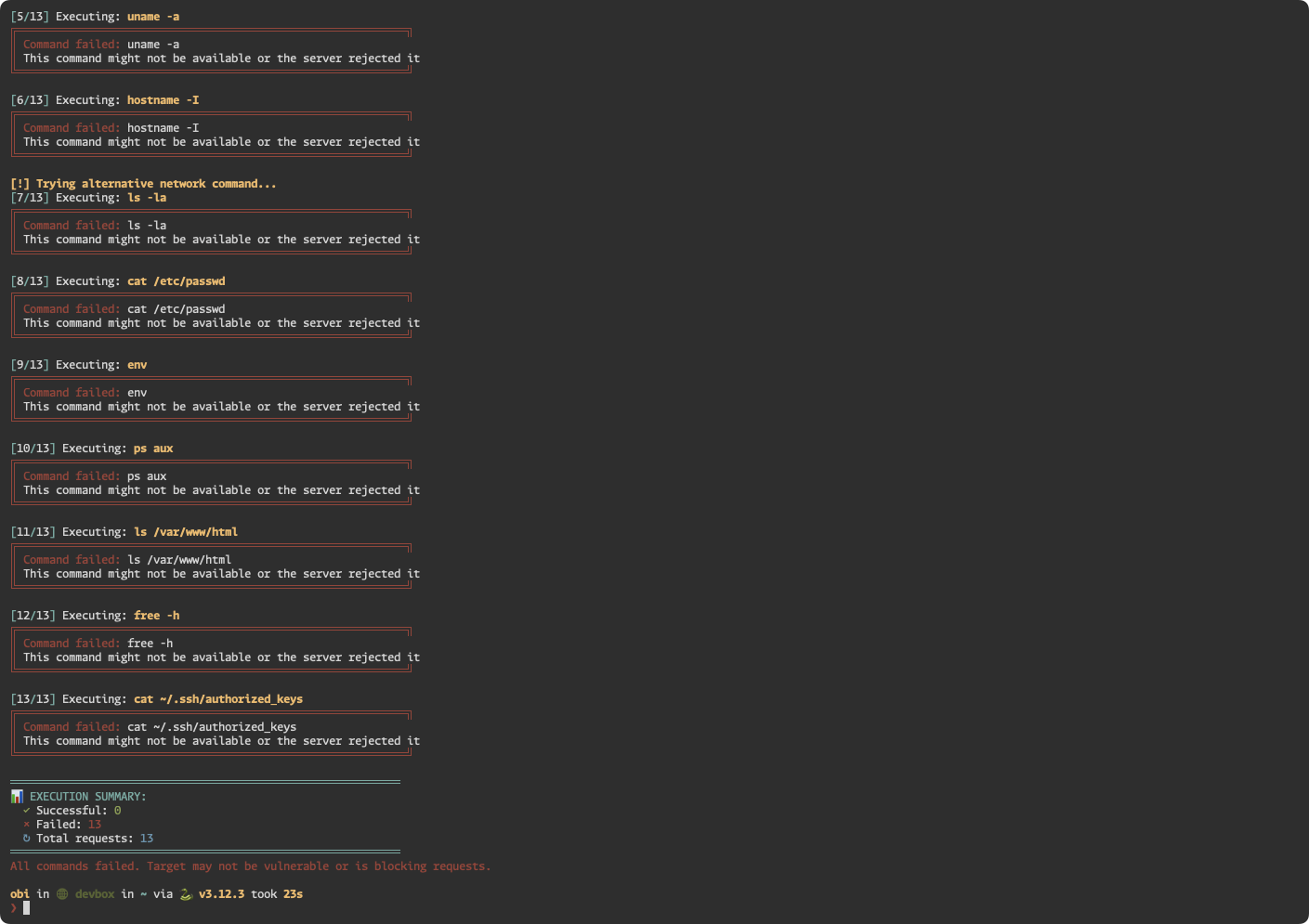

1. The Exploit Attempt Failed

When running the command-line tool, every single payload attempt failed to execute against the server. The tool could not bypass the edge.

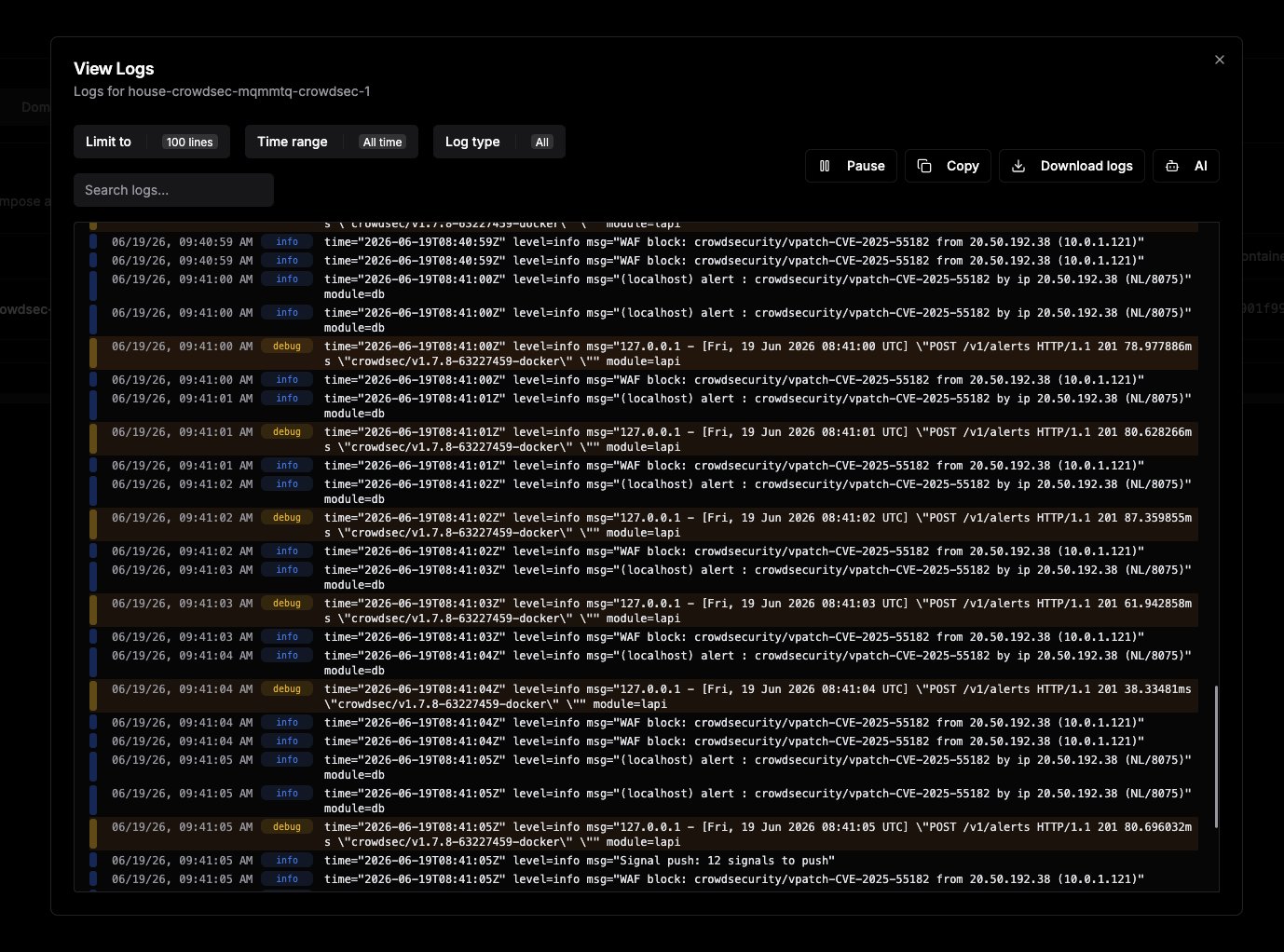

2. The CrowdSec Logs

Looking into the CrowdSec container logs, I could see exactly what happened. CrowdSec actively denied the exploit attempt, recognizing the malicious payload in real-time.

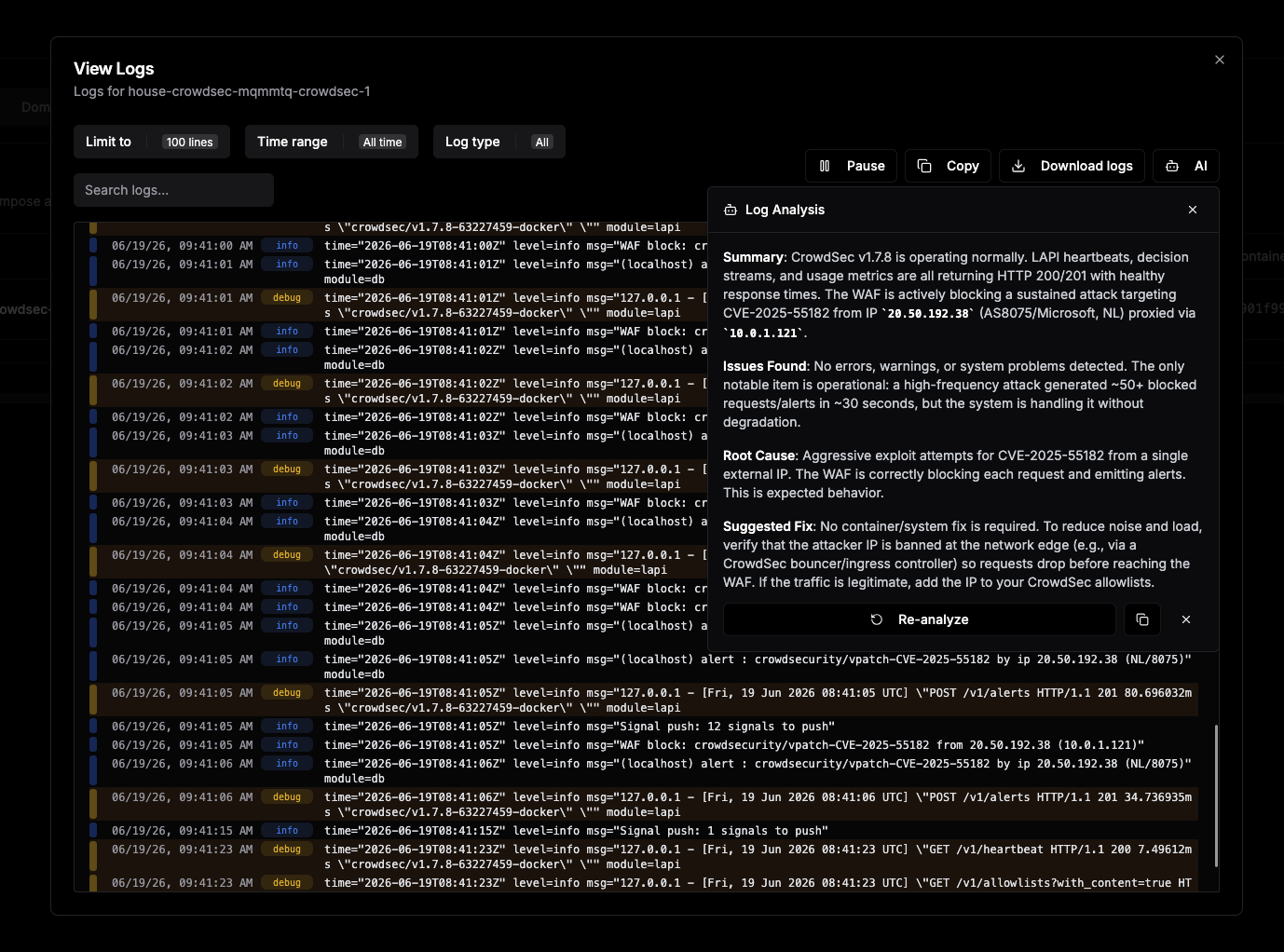

3. Log Analysis

To confirm, I ran the raw logs through an AI summary, which verified that CrowdSec's AppSec rules successfully caught and dropped the Next.js RCE payload before it ever touched my application container.

Conclusion

By combining Traefik, Dokploy, and CrowdSec AppSec, I was able to deploy a highly capable, completely free Web Application Firewall on my cloud Homebox. It gives me immense peace of mind knowing that my personal apps and quick deployments are shielded from active, automated exploits the moment they hit the edge.

If you self-host or maintain a personal server, I highly recommend adopting a similar edge-level WAF architecture.
